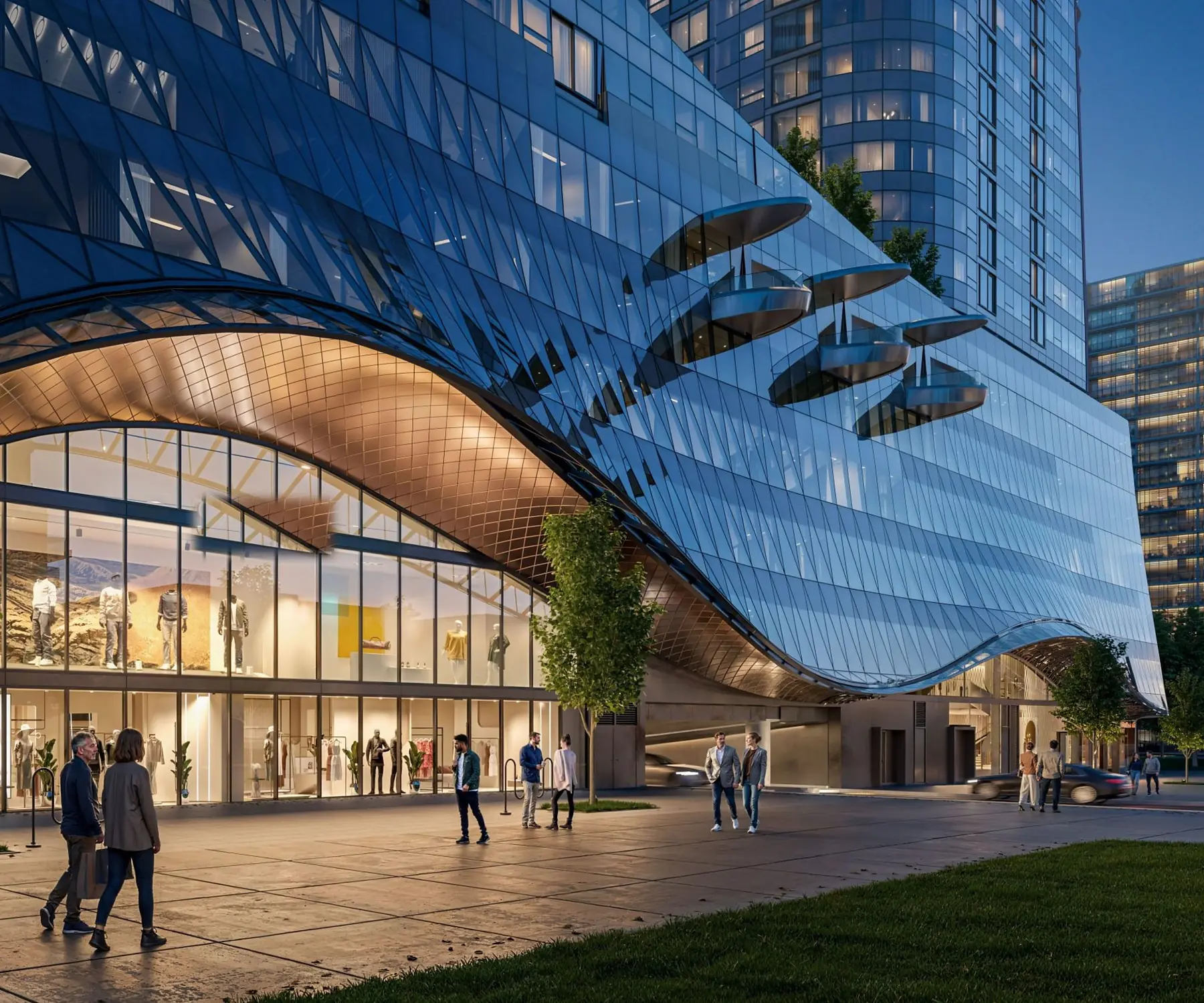

Curtain-wall glazing at the Oakridge development, Vancouver
Glazing tape

Cut to your spec.

Structural glazing tape, spacer tape and double-sided foam tapes, slit in-house to the exact width your line runs, in the thicknesses we stock. If we do not carry your width, we cut it.

Our foundation

Cascade Aqua-Tech was built on glazing tape.

It was the very first thing we supplied, slit by hand out of a garage in 1987, and it is still the craft at the centre of everything we do. Six branches later, the glaziers and window shops who started with us are still the people we cut for.

Slit in-house since 1987

We cut glazing tape to the size your line runs.

We slit master logs on our own equipment, so custom widths are never a problem, we cut to the width your line runs. Each tape comes in the thicknesses we stock for that line, matched to the joint and substrate.

  • Slit from master logscustom widths to 54″
  • Structural glazing tapeCGT 6100, Norton V2100
  • Single & double-sidedPE, PVC & PU foam
  • By the roll or custom runsome sizes carry an MOQ
The lines we carry

Glazing tapes, one supplier

CGT 1000

Our best seller

Our core glazing tape and the one our branches move the most of: closed-cell polyethylene with acrylic adhesive on both sides, the everyday tape for window manufacturing and glazing. Good UV resistance, stays flexible in the cold, and needs no shim, with none of the squeeze-out of butyl.

PE closed-cell · 1/32″, 1/16″, 1/8″ · white / black
View CGT 1000 →

CGT 6100

High-density elastomeric PVC foam spacer for two- and four-sided structural glazing. Chemically compatible with all silicones and breathable so the silicone cures, with excellent adhesion to glass, stainless, aluminum, painted metal and vinyl. Improves U-values.

PVC foam · 1/8″, 3/16″, 1/4″ · black / grey
View CGT 6100 →

Norton V2100

V2200 / TBX

The polyurethane-based structural spacer that is the industry standard, single or double-sided, with TBX (Thermal Bond Express) as the one-sided option. We convert the master logs to your size in-house.

PU foam · 1/8″ to 1/2″ · black / grey
View Norton →

CGT 1500

1510 / 1520

Medium-density closed-cell PVC foam with an aggressive adhesive, tested to AAMA 810.1. Holds the seal in high-movement joints and cushions shock, sound and vibration while sealing out air, water, light and dust. 1510 single-sided, 1520 double-sided.

PVC foam · single & double-sided · AAMA 810.1
View CGT 1500 →

1210G

A light-density closed-cell PVC foam for positive seals on irregular surfaces and tight-radius curves, an economical air, water, light and sound barrier. Gray and sulfur-free, die- or kiss-cut to your size.

PVC foam · .079″ to 1″ · widths to 54″
View 1210G →

3M VHB

Very High Bond acrylic tape that replaces rivets and hot-melt epoxies, spreading load across the whole joint. Grey, black or clear, with common 3M lines like 4941F, 4905, 4910, 4956, 4979 and 5952 in stock.

acrylic · 20 to 120 mil · 72h full cure
View 3M VHB →

Butyl & masking

Butyl shim and bedding tapes for traditional glazing, plus general-purpose and green painters tapes our glaziers use for structural and butt glazing, clean removal with no residue.

440 & Polyshim butyl · painters
Adhesives & tapes →
Structural spec

CGT 6100, engineered to the numbers

Our high-density structural glazing spacer is chemically compatible with all silicones and breathes so the sealant cures, with excellent adhesion to glass, stainless, aluminum, painted metal and vinyl. Field-fabrication grade, cut to custom widths.

Download data sheet (PDF)
Density
304 kg/m³
Force to compress
155 kPa
Hardness (Shore 00)
65
Tensile strength
896 kPa
Moisture-vapour transmission
0.85 g/100 sq in · 24h
Elongation
70%
Thermal conductivity (K)
0.29
Application temp
10 to 45 °C
Service temp
−23 to 100 °C
Thicknesses
1/8″, 3/16″, 1/4″
Custom sizing

How we cut your tape

01

Pick the chemistry

Foam, PVC, acrylic or high-bond, matched to your substrate, load and exposure.

02

Choose your width

Give us the width you need. We slit the master log to size, in the thickness we stock for that line.

03

Roll or custom run

Take stock sizes by the roll, or order a custom run. Some sizes carry a minimum order.

04

Pick up local

Cut and ready at your branch, with technical help on structural glazing spec.

Where it goes

Built for the glazing trade

  • Curtain wall & window wall
  • Structural glazing
  • Window & door fabrication
  • Insulated glass units
  • Panel & ACM bonding
  • Setting blocks & spacers
  • Point-of-glaze weather seals
  • Spandrel & back-pan assemblies
  • Shop fabrication & field glazing

Need a size we do not stock? We slit it.

Call your local branch for custom widths, structural glazing tape and minimum order quantities on custom runs.

Find your branch

Structural glazing tape and some custom sizes are made to order, so your branch will confirm sizing, lead time and minimums.

Talk to a product specialist

Six branches across BC & Alberta. Real stock, real expertise, since 1987.
